B&T Industries V8 Atlas Bipod BT10-LW17 w/ ADM-170-S lever mounts on any Picatinny


Out of stock

SKU: BT10-LW17 Category: Product ID: 5576

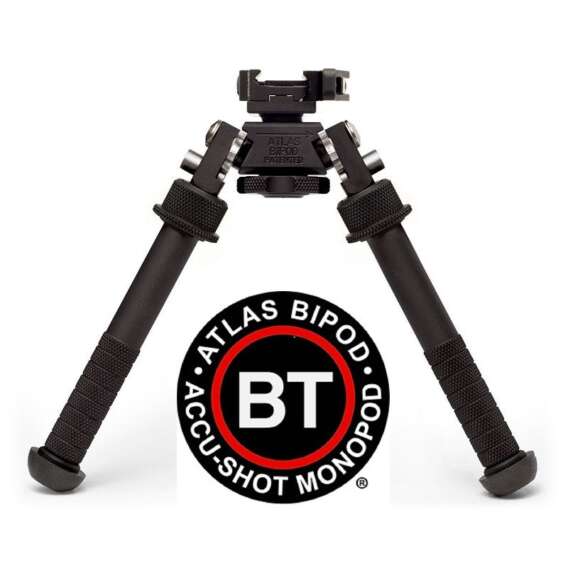

B&T Industries V8 Atlas Bipod -Standard Height

*The Sporting Jack is an authorized dealer of B&T Industries

BT10-LW17 V8 Atlas Bipod

The BT10-LW17 V8 Atlas Bipod mounts directly to any 1913 style Picatinny rail via the included ADM-170-S lever.

It is comprised of 6061-T6 aluminum that is Mil-Spec Type III hard coat anodized and have heat treated stainless steel components. Available in black only.

NSN 1005-01-623-6257

Height Range: 5.2 – 9.6″ (6.8″ at 90°)
Preloaded Pan: 30 degrees
Preloaded Cant: 30 degrees
Position Button 0.36″ diameter
5 leg positions: 0, 45, 90, 135 & 180 degrees
Weight: 12.7 ounces approx.
Footprint: 8-11″

LW17: Lever Mount With ARMS 17S Mount – Atlas V8 Series Bipod Video Tutorial
UHMW components used for smooth tracking
Preload on Pan and Cant can be tightened by means of the knurled knob
Picatinny Rail Mount interface by either standard machine screw fastener based clamp or optional ARMS 17S lever mount
Independent, intentional and non-orientated leg positioning allows either hand to move leg into any of the five leg positions
Solid leg positions allows shooter to load the bipod at the 45 and 90 degree positions.
Non-orientated leg length adjustment done by either hand: Outer leg slides on the Inner leg locating on any of five positions ¾” apart
Optional 3″ Leg Extensions to increase height
Soft, durable Standard Rubber feet that are suitable for many surfaces
Optional interchangeable Ski and Raider Cleat feet easily swapped in the field with the press of a stainless steel plunger with a bullet tip
Optional mounting systems available for Accuracy International and Sako rifles

Additional information

Weight 12.0 oz
Dimensions 10.0 × 5.0 × 1.0 in
